12V/24V/48V 300A Battery Master Disconnect Switch Boat Marine Caravan Isolator

Features:

This item is widely used in all kinds of RV, boats, winch power cable, both apply to the inside or outside electrical equipment’s switch, such as flashing light, chassis light, fog light, dome light and so on.
Made of high quality ABS, durable, corrosion resistant, can withstand harsh marine conditions.
Easy to install, it can stand alone or be interlocked with other switches to isolate and secure the electrical system with 12V to 48V systems.

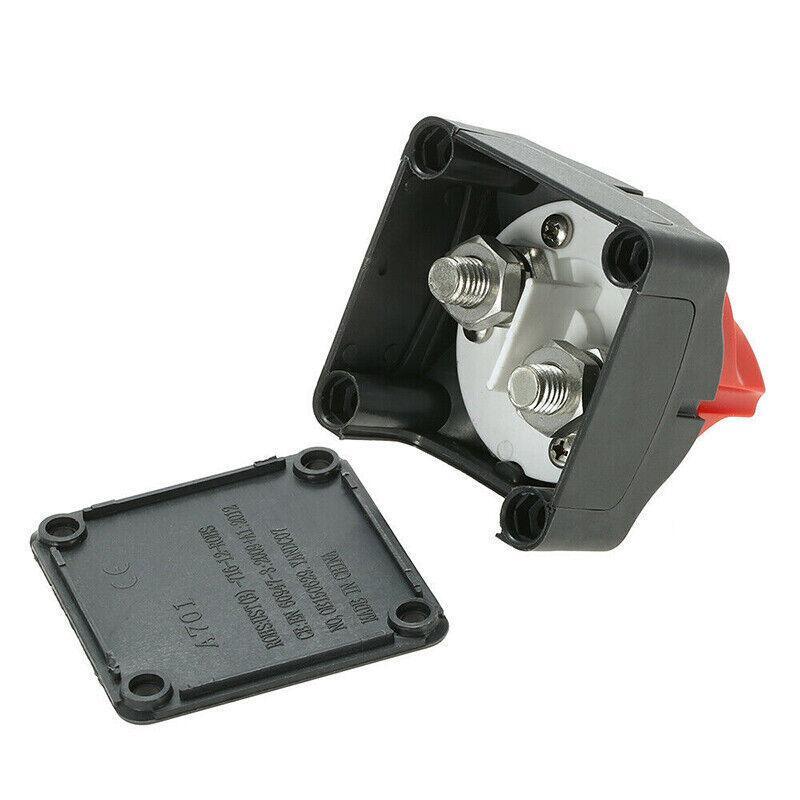

The rear cover isolates the rear terminals from short circuits to meet ABYC requirements.
A 45 degree counter-clockwise rotation allows the removal of the control knob, which has an interchangeable labelling system for a wide range of applications.
Three removable side panels allow access to 1/0 cables. 2 mounting screw holes (10mm diameter).
Note: The engine must be stopped before selecting OFF to protect the alternator. Eliminate any power drain from the battery when not in use.

Specification:

Voltage : 12V, 24V, 48V DC
Electric Current: 100A-300A
Current Rating: 275A(12V), 150A(24V), 75A(48V)
Mounting Screw Diameter: 10mm
Dimensions: 68 x 68 x 55 (mm)
Operation: On/Off
Colour: Black and Red
Package weight: 228g

Package List:

1 x Switch with cover

Notes:

1. Please allow slight chromatic aberration in the photo
2. Due to manual measurement, the size may deviate
