Electric Hoist Winch 500KG 20M Cable Red

This electric hoist is engineered for efficient heavy lifting in garages, warehouses, and workshops. It is designed to be mounted on an overhead beam, facilitating the vertical suspension of heavy loads with dependable performance and integrated safety features.

• Powered by a lateral-magnetic single-phase capacitance motor

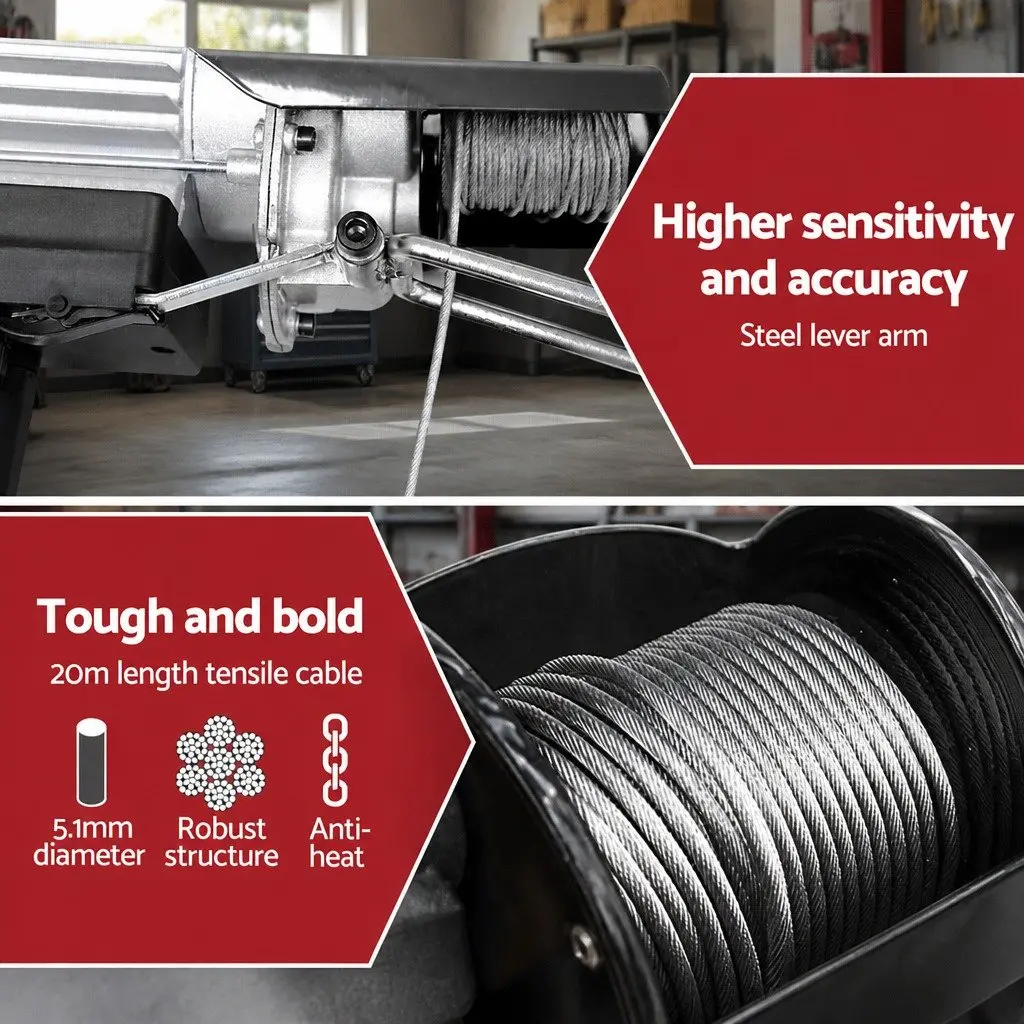

• 20m upgraded high tensile cable
• Emergency instant stop switch
• Built-in flywheel for self-cooling
• Single and double rope lifting capability
• 7x19 robust wire rope structure
• Overload protection function
• Includes extra hook

• Voltage: AC 240V/50Hz
• Input power: 1400W
• Single rope capacity: 500kg
• Double rope capacity: 1000kg
• Rope type: 7x19 structure wire rope
• Lifting speed (single rope): 8 metres/min
• Lifting speed (double rope): 4 metres/min
• Lifting height (single rope): 20m
• Lifting height (double rope): 10m
• Weight: approx. 28kg
• Power cable length: 0.8m
• Control switch cable length: 1.8m

• Electric Hoist x1
• User Manual x1
