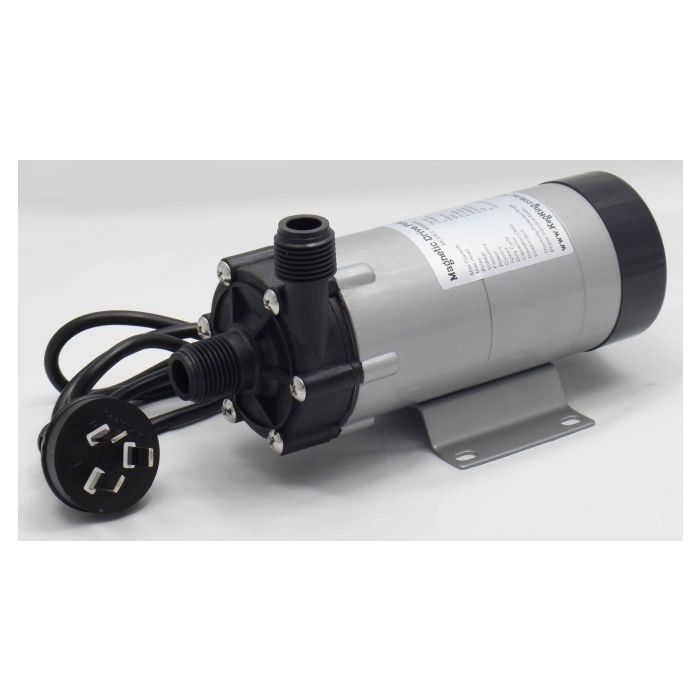

High Temp Magnetic Drive Pump 25W

This pump is constructed of food-grade materials and handles boiling wort with ease. The impeller housing is made from polysulfone as it is a tough, food-grade plastic rated up to 120C. The magnetic drive acts as a clutch allowing the user to put back pressure on the pump to slow down flow without any damage to the pump. Since it is centrifugal, it’s not self priming, you must put the pump under the level of the liquid source.

This is an extremely efficient 0.1amp pump which can be run continuously at elevated temperatures.
The magnetic drive ensures no lubricated bearings are in contact with the liquid at all, so you can be sure there is no chance of any contamination of the liquid being pumped, which is why this pump is ideal for home brewing.

Voltage: 220-240 at 50-60hz
Power rating: 25w
Max Head: 3.4m
Max Flow: 19L/min
Wiring: AU Standard 10amp plug
Fittings: 1/2 BSP

To make this pump even more robust we now sell a 304 stainless steel impeller housing for this pump as an optional upgrade.

Note: the pump does not include any of the quick connects, camlocks or ball valves shown in the images these are just to show how you can set the pump up to incorporate it into your brewery.
