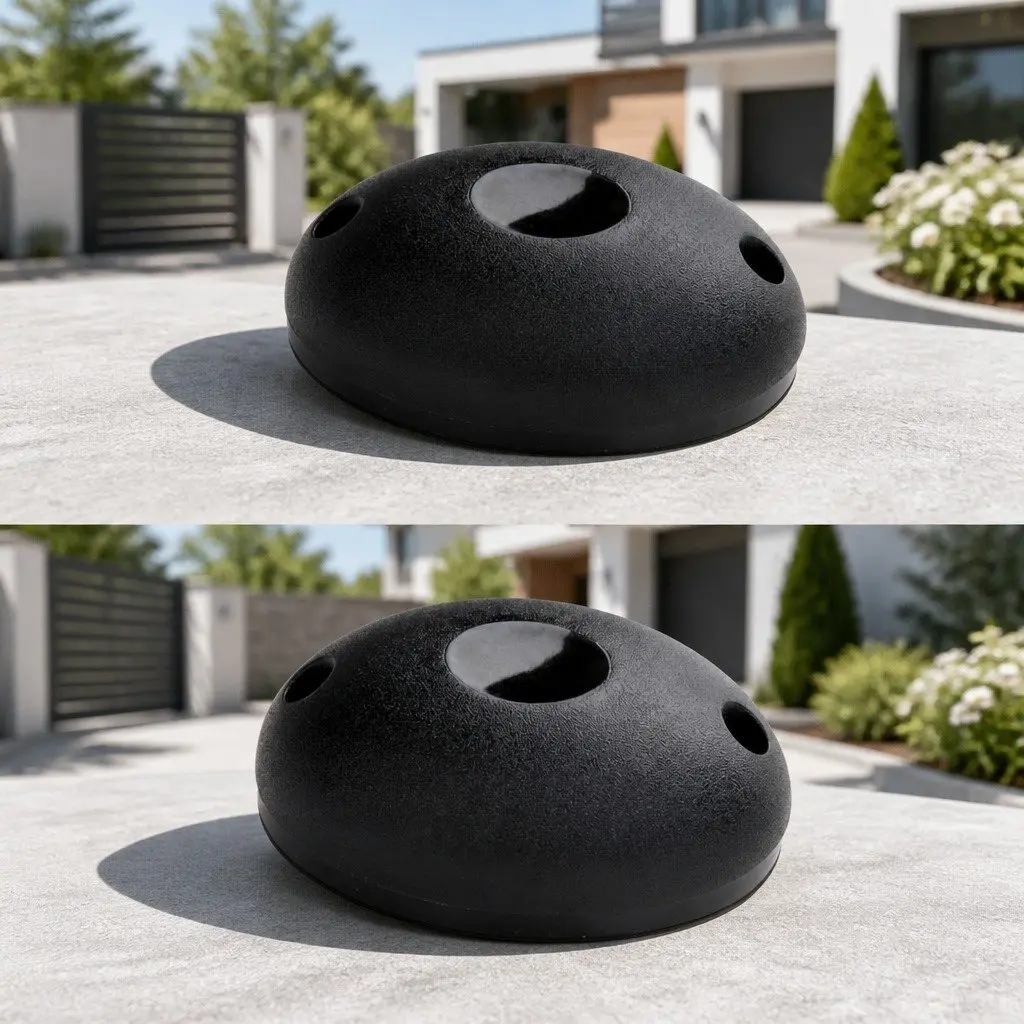

Infrared Photocell Swing Sliding Gate Door Sensor Security Beam Detector 20M

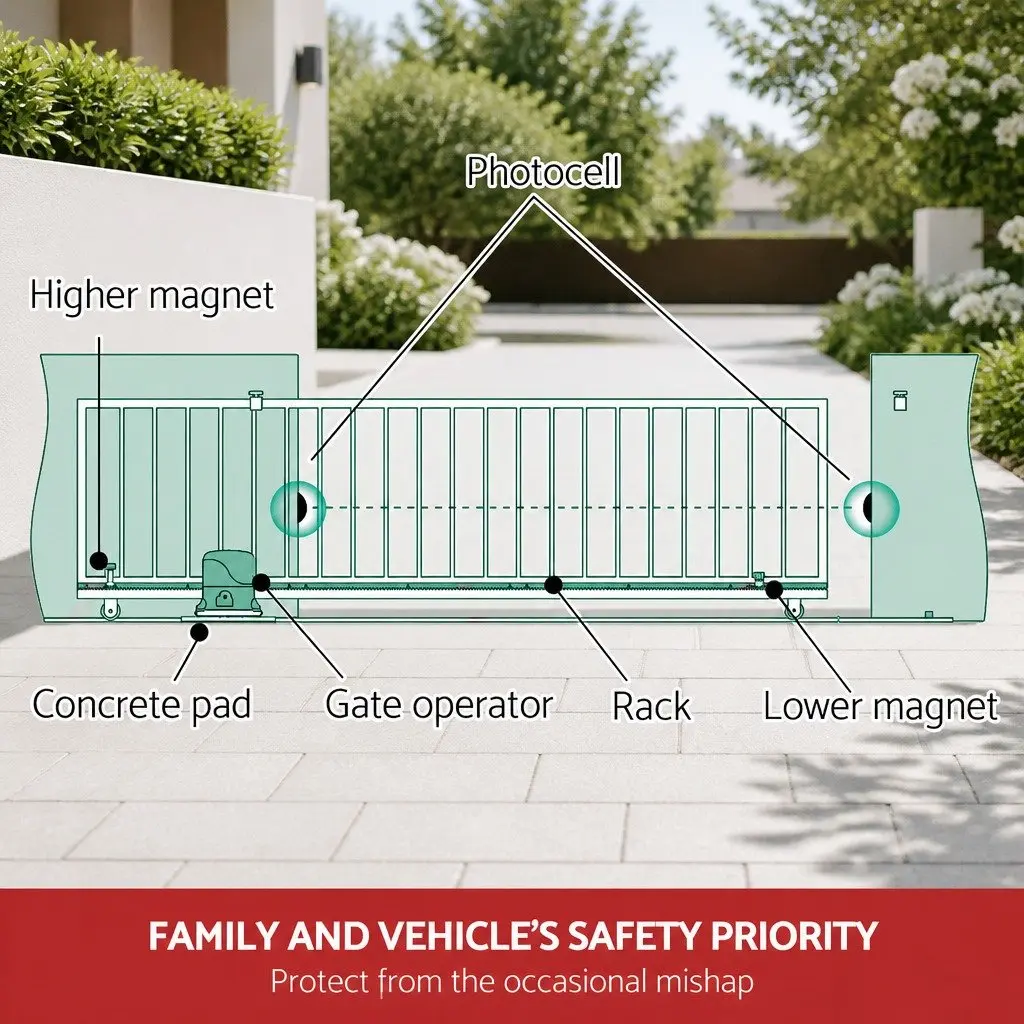

This infrared photocell sensor is suitable for swing and sliding gate systems. It has a detection range of 20M, operates within -20°C to +70°C, requires assembly, and connects to a 12-24 DC/AC power supply.

• Hard frosted photocell design for rough weather conditions
• Infrared technology with automatic beam detection
• Detection range up to 20M (range may reduce by 30% in poor weather)
• Operating temperature range -20°C to +70°C
• Power supply 12-24 DC/AC
• Relay output 1A max 30V
• Assembly required

• Technology: Infrared Photocell
• Receiver range: ≤20m
• Frequency: 1.92KHz
• Wavelength: 940mm
• Input: RX 15mA-TX 30mA
• Angle: ＜±10°
• Working temperature: -20°C to +70°C
• Product weight: approx. 0.2kg
• Product dimensions: approx. 7.5 x 4.9 x 3cm
• Color: White

• Infrared photocell x2
• User Manual x1
